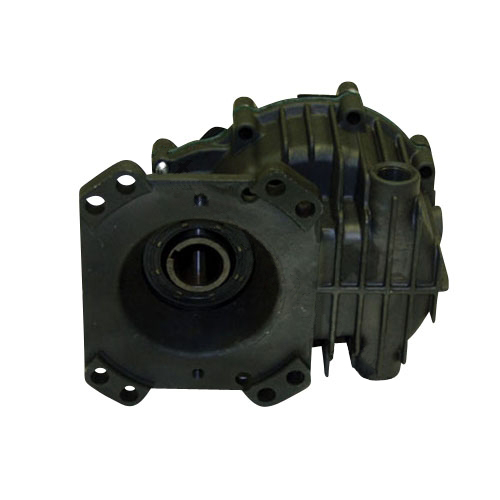

8.710-334.0-Legacy-Legacy Geared Reduction

These geared reduction units are specifically designed for Legacy and Admiral pumps.

A Gear Driven Pump is essentially a solid shaft pump with a direct drive gear reduction unit attached. With a gear driven pump, the original pump crankcase is mounted to a separate crankcase for the reduction gears. The two units are mounted together but individually sealed with the gear box using a thicker oil like gear lube whereas the pump uses the standard 30 weight, non-detergent oil. The pump and gearbox are then attached to the engine directly via the hollow shaft on the gear box.

The Pros and Cons:The pump and gearbox are self contained with no belts and pulleys. No belt guard taking up space. The gear ratio being approximately 2.2:1 allows for the pump to run at slower speeds with higher output volumes than most high speed direct drive pumps. The gear box driven machine can run for longer times with higher efficiency. The initial cost is more for the gear box type unit versus a belt drive unit but makes up for it in less down time that you might have with belts and pulleys.

• Engine-to-pump drive units

• 2.1 to 1 reduction ratio (3675 Eng. RPM=1750 Pump RPM)

• Engine shaft size = 1" or 1-1/8"

• Pump shaft size = 24 mm or 30 mm

 87103340 - GEAR REDUCTION, RTI-121 1 1/8"" SHAFTXD

Helpful tips to keep your pressure washer pump operating at peak performance

California Residents - Click here for Prop 65 WARNINGS

Manufacturer:	Legacy
SKU:	8.710-333.0
Brand:	LEGACY
