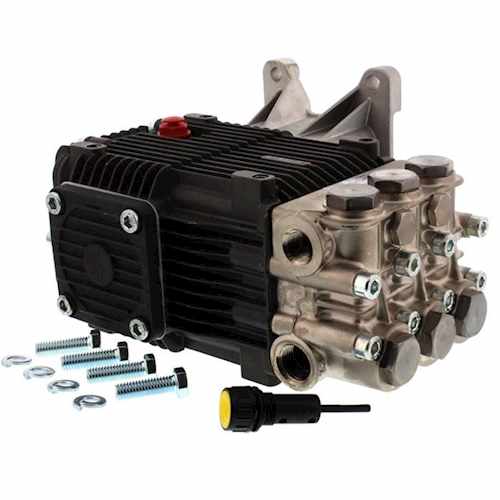

"Annovi Reverberi RKV 3400 rpm D Version 1"" Hollow Shaft
Annovi Reverberi pumps are a combination of exceptional degree of technology and innovation. They deliver quality and reliability worthy of a leading brand on the market. The wide range of AR pumps include many models which vary in terms of pressure, delivery, power and technical characteristics, to satisfy widely different market demands.
Plunger pumps are designed for a wide variety of moderate pressure washing applications. They are constructed with die-cast bodies and feature a brass head. Internal components include special thick solid ceramic plungers for long life and durability.
This version of the RKV series of AR pumps feature precision cast cooling fins that are anodized for maximum heat dissipation. The oversized needle bearing on the drive side and ball bearings on the non-drive side assure proper shaft alignment and maximum life. Valve cages of special design are impervious to water absorption and provide positive seating and extended life.
• Triplex plunger pump
• Direct drive with gas flange 7-18 HP SAE
• Maximum pump speed: 3400 RPM
• Shaft diameter: 1 hollow
• Maximum horsepower requirements: 15.52 GHP
• Maximum fluid temperature: 140 Degree F.
• Inlet ports (2): 1/2"" female
• Discharge ports (2): 3/8"" female
• Drive side: Standard right
• Nickel Plated forged brass head and valve covers
• Solid ceramic plungers
• Weight: 21.0 lb
OPERATING INSTRUCTIONS & PARTS MANUAL:
http://www.watercannon.com/PDF/ARManuals/RK-Series-Pumps.pdf
Helpful tips to keep your pressure washer pump operating at peak performance (http://www.watercannon.com/t-PumpDiagnostics.aspx)
California Residents - Click here for Prop 65 WARNINGS (http://www.p65warnings.ca.gov)"
| Canonical Reference: | true |
| Shipping Availability: | ComrogenAPI.Extensions.NetSuite.WebServiceNetSuite.ListOrRecordRef |
| Weight: | 21 |
| Manufacturer: | Annovi Reverberi |
| SKU: | RKV3.5G30AD-F24 |
| Brand: | AR |
| Drive Type: | 1 Inch Hollow Shaft |
| GPM: | 3.5 |
| Plumbing Type: | Not Included |
| PSI: | 3000 |
| RPM: | 3400 |
| Shaft size: | 1 INCH |
| Variant MPN: | RKV35G30ADF24C2 |
