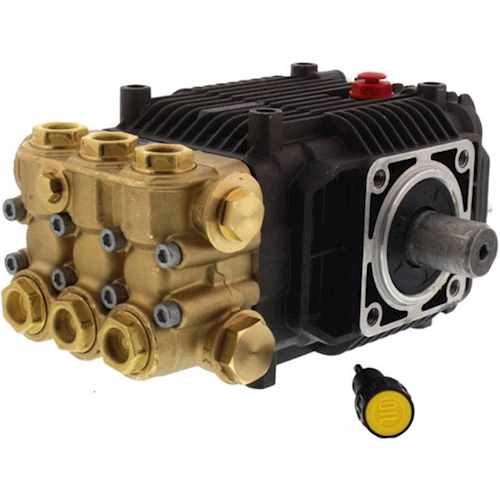

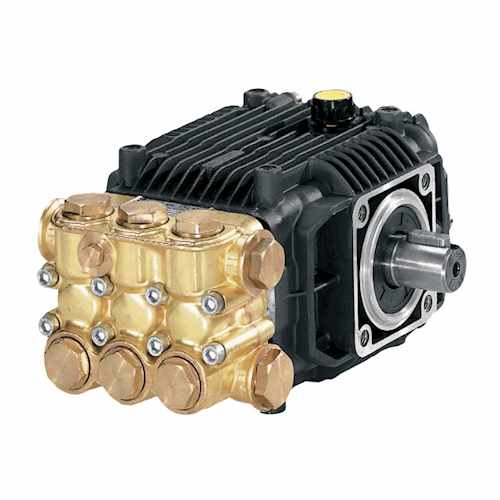

Pump Plunger 3.5 GPM 2500 PSI 1750 Rpm 24 mm Shaft

Annovi Reverberi XMA 1750 rpm N Version 24mm Solid Shaft XMA3G25N XMA35G25N XMA4G20N

Plunger pumps are designed for a wide variety of moderate pressure washing applications. They are constructed with die-cast bodies and feature a brass head. Internal components include special thick solid ceramic plungers for long life and durability.

This XMA series of pumps have precision cast cooling fins that are anodized for maximum heat dissipation. The oversized needle bearing on the drive side and ball bearings on the non-drive side assure proper shaft alignment and maximum life. Valve cages of special design are impervious to water absorption and provide positive seating and extended life.

• Triplex plunger pump
• Solid shaft for belt or gear drive
• Maximum pump speed: 1750 RPM
• Shaft diameter: 24 mm solid
• Maximum horsepower requirements: 5.0 BHP
• Maximum fluid temperature: 140 Degree F.
• Inlet ports (2): 1/2"" FPT
• Discharge ports (2): 3/8"" FPT
• Drive side: Standard right
• Forged brass head and valve covers
• Solid ceramic plungers
• Weight: 14.0 lb.

OPERATING INSTRUCTIONS & PARTS MANUAL:

http://www.watercannon.com/PDF/ARManuals/XM-SXM-Series-Pumps.pdf

Helpful tips to keep your pressure washer pump operating at peak performance (http://www.watercannon.com/t-PumpDiagnostics.aspx)

California Residents - Click here for Prop 65 WARNINGS (http://www.p65warnings.ca.gov)

Canonical Reference:	true
Shipping Availability:	ComrogenAPI.Extensions.NetSuite.WebServiceNetSuite.ListOrRecordRef
Weight:	0
SKU:	XMA35G25N
PSI:	2500
GPM:	3.5
RPM:	1750
Variant MPN:	PMP-ARXMA35G25N
