0.5 GPM @ 1500 PSI @ 1750 RPM - RCAM0.5G15E-F8

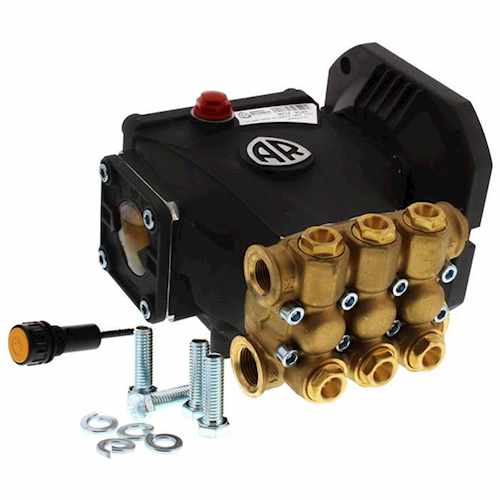

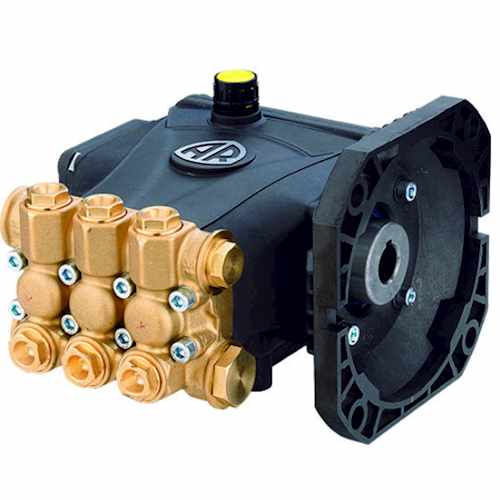

Annovi Reverberi RCA/RCV Triplex Plunger Pump E Version 5/8"" Hollow Shaft RCA2G25E-F8 RCA3G25E-F8

Annovi Reverberi/AR North America RCA E version with F8 flange series pumps are designed to direct drive on electric NEMA 56 C motors ranging from 1.5–6.0 HP. Intended for use on heavy tasks, this triplex plunger pump features the latest in design and technology. They are life tested over 2,000 hours at maximum performance.

Features
• Latest in design and technology
• New crankcase style
• High strength forged brass manifold for long term use
• NEW ceramic plungers, thicker wall to help prevent thermal shock
• Stainless steel valves
• Side mount valve seat o-rings
• High quality high pressure seals
• NEW low pressure seal with built in scraper
• Two piece piston guides
• NEW connecting rod with 12% more load surface
• Large side cover sight glass
• Oversized bearings
• Rear cover oil drain
• Forged, precision ground crankshaft

Specifications
• Shaft diameter: 5/8” hollow
• Maximum horsepower requirements: 3.4 EBHP
• Maximum fluid temperature: 140°F.
• Inlet ports (2): 1/2"" female
• Outlet ports (2): 3/8"" female
• Oil capacity: 9.81 oz
• Weight: 11.0 lb.

Helpful tips to keep your pressure washer pump operating at peak performance (http://www.watercannon.com/t-PumpDiagnostics.aspx)

California Residents - Click here for Prop 65 WARNINGS (http://www.p65warnings.ca.gov)

Canonical Reference:	true
Shipping Availability:	ComrogenAPI.Extensions.NetSuite.WebServiceNetSuite.ListOrRecordRef
Weight:	11
Manufacturer:	Annovi Reverberi
SKU:	RCAM0.5G15E-F8
Brand:	AR
Drive Type:	5/8 Inch Hollow Shaft
GPM:	0.5
Plumbing Type:	Not Included
PSI:	1500
RPM:	1750
Shaft size:	5/8 INCH
Variant MPN:	RCAM05G15E-F8
