EZ4040G Bare - 4000psi 4gpm 3400RPM-General Pump

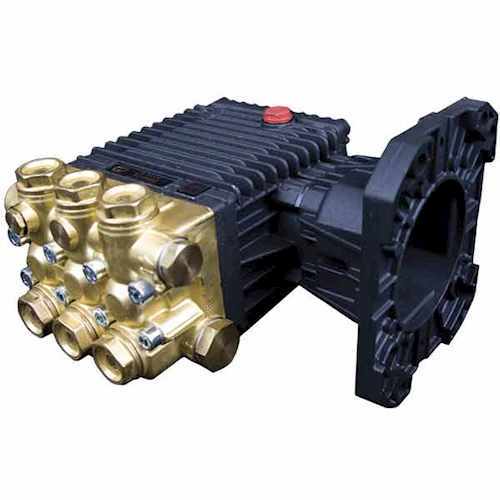

General Pumps EZ Series 44 Triplex Plunger Pump EZ4040 with hollow shaft is flanged for direct coupling to gasoline engines (SAE J609B). The pump has a forged brass manifold with an exclusive lifetime warranty. The flange is for quick attachment to Gasoline engines up to 16 HP.

Features include:
* Standard SAE J609 gasoline mounting flange for up to 16 hp engines includes bolt pack
* Forged brass manifold with an exclusive lifetime warranty even against accidental freezing
* Die-cast, anodized aluminum oil-bath crankcase includes oil, shipping plug and vented dipstick
* Innovative one-piece plunger design to eliminate water entering crankcase
* Premium roller bearing, Unitized stainless steel inlet and discharge valve

Specifications:
* Maximum Volume: 4.0 GPM
* Maximum Discharge Pressure: 4200 PSI
* Maximum Pump Speed: 3400 RPM
* Maximum Inlet Pressure: 125 PSI
* Maximum Inlet Vacuum: 3ft. Water (2.6 in Hg)
* Plunger Bore: .512 in. / 13 mm
* Plunger Stroke: .512 in. / 13 mm
* Crankcase Oil Capacity: 14.0 oz.
* Maximum Fluid Temperature: 165 F
* Inlet Port Thread: 1/2-14 BSPP-F
* Discharge Port Thread: 3/8-19 BSPP-F
* Shaft Diameter: 1.0 in. / 25.4 mm
* Weight: 20 lbs. Dimensions: 8.8″ x 9.7″ x 6.5″


Canonical Reference:	true
Shipping Availability:	ComrogenAPI.Extensions.NetSuite.WebServiceNetSuite.ListOrRecordRef
SKU:	EZ4040G-BARE
GPM:	4
RPM:	3400
Variant MPN:	PMP-G4040EZ
