Pressure Pump for Plant service and hot water temperatures

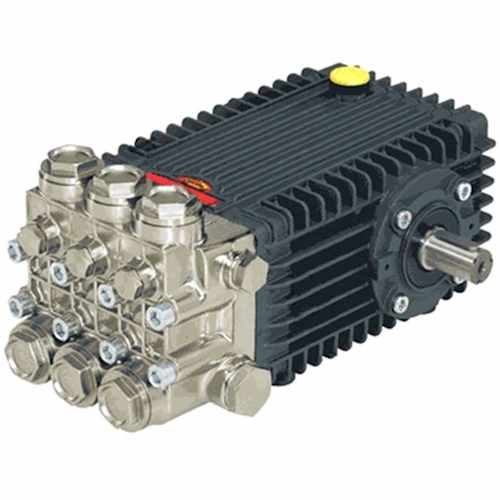

The Emperor HTF 66HT series triplex plunger pump is designed for use in prep units, conveyors and with multiple gun applications. This pump is excellent for carpet cleaning and for use in industrial plant systems where hot water is required.

• Maximum inlet pressure: 125 PSI
• Maximum fluid temperature: 185°F
• Inlet port thread: 3/4"" - 14 BSP-F
• Discharge port thread: 3/8"" - 19 BSP-F
• Shaft diameter: .945 in./24 mm
• Pump dimensions: 13.27"" x 9.6"" x 6.23"" 13.4"" x 9.8"" x 7.5"" (with rails)
• Maximum inlet vacuum: 9 ft. water (7.9 in. Hg)
• Crankcase oil capacity: 31 oz.
• Use GP series 100 oil

Helpful tips to keep your pressure washer pump operating at peak performance (http://www.watercannon.com/t-PumpDiagnostics.aspx)

California Residents - Click here for Prop 65 WARNINGS (http://www.p65warnings.ca.gov)

Canonical Reference:	true
Shipping Availability:	ComrogenAPI.Extensions.NetSuite.WebServiceNetSuite.ListOrRecordRef
Weight:	41
Manufacturer:	General Pump
SKU:	HTF2421S
Brand:	GENERAL PUMP
Drive Type:	24mm Solid Shaft
GPM:	10
Plumbing Type:	Not Included
PSI:	2500
RPM:	1750
Shaft size:	24 MM
Variant MPN:	PMP-G2124HTF
