2.2GPM-2000PSI-3450Rpm-5/8 Inch Shaft-2Sf22Es Series-Cat Pumps

By : Cat Pump

SKU : 2SF22ES
  • Quick Specs
  • Manufacturer: Cat Pump
Regular Price: $661.75
In Stock
Quantity:
Description

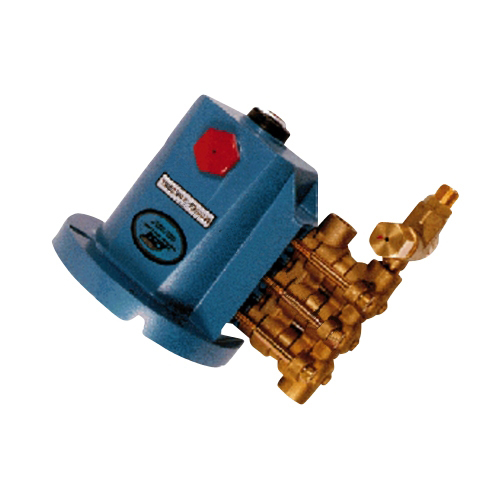

This is a triplex [three plunger rods] positive displacement, reciprocating, plunger pump, constructed of a Brass manifolds, 304SS valve assemblies, solid ceramic plungers and standard NBR [Buna-N] seals and o-rings. This is a hollow-shafted pump designed to bolt directly to a c-face electric motor or gas engine, providing easy, compact installation.

Water Cannon is an online discounter of the trusted Cat Pump product line, and it is our goal to deliver quality industrial, positive displacement triplex piston and high-pressure plunger pumps at the lowest price available.

With proven dependability, Cat Pumpsft plunger pumps are utilized world-wide in thousands of applications including vehicle cleaning, car wash bays, commercial mobile wash, processing industries, manufacturing, oil field service operators, food processing, mining and portable hot water pressure washing systems.

If you need application assistance please call one of our industry trained technicians at 1-800-333-9274 to find the correct Cat Pump of the thousand Cat Pumps offered by the world leader in Triplex Reciprocating High Pressure Pumps and Systems.

Cat Pumps 2SF22ES 2.2GPM 2000PSI 3450RPM 5/8" SHAFT ELEC. FLANGE W/UNLOADER 2795

Pump Features:

• UNIFLOW design provides continuous fluid flow forward through the pump, reduces cavitation risk and increases pump life
• Unique spring loaded inlet valves and the flow through ceramic plungers allow excellent suction capabilities.
• Ultimate portability, less than 11 pounds, less than 10" long
• Regulating unloader is standard on each pump to assure system pressure control and pump protection

Specifications:

• Triplex plunger pump
• Direct drive with electric flange
• Maximum volume: 2.0 GPM
• Maximum discharge pressure: 1200 PSI
• Maximum inlet pressure: 75 PSI
• Maximum pump speed: 3450 RPM
• Minimum horsepower requirements: 1.6 BHP
• Bore: .708" (18mm)
• Stroke: .122" (3.1mm)
• Crankcase capacity: 11 oz. use CAT pump hydraulic oil
• Inlet port: 3/8" FPT
• Discharge ports: Dual 3/8" FPT
• By-pass port: 1/4" FPT
• Dimensions: 9.13" x 6.65" x 6.50"
• Weight: 10.6 lbs.

Lubrication: Fill crankcase with CAT Pump hydraulic oil per pump specifications. DO NOT RUN PUMP WITHOUT OIL IN CRANKCASE. Change initial oil after 50 hour break-in period, and every three months or 500 hour intervals thereafter.



California Residents - Click here for Prop 65 WARNINGS

Specifications

Manufacturer: Cat Pump
SKU: 2SF22ES
PSI: 2000
GPM: 2.2
Drive Type: Direct Drive
RPM: 3450
Plumbing Type: External Recirculating
Shaft size: 5/8 Inch Hollow Shaft
Inlet Port Size: 3/8"NPT(F)
Discharge Port Size: 3/8"NPT(F)
Material: N/A
Brand: CAT PUMP
