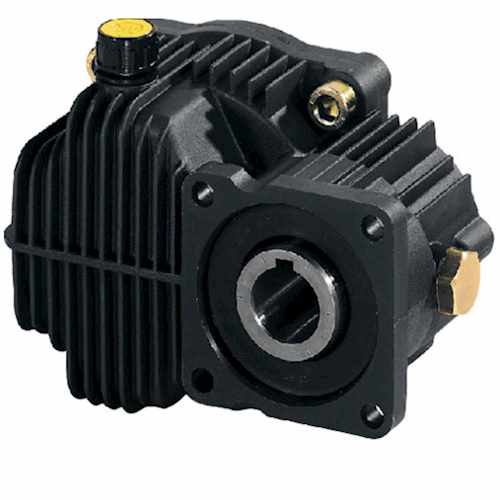

Gear Boxes - RK/XR/XW/SXW Series 1" Shaft - AR1600

A Gear Driven Pump is essentially a solid shaft pump with a direct drive gear reduction unit attached. With a gear driven pump, the original pump crankcase is mounted to a separate crankcase for the reduction gears. The two units are mounted together but individually sealed with the gear box using a thicker oil like gear lube whereas the pump uses the standard 30 weight, non-detergent oil. The pump and gearbox are then attached to the engine directly via the hollow shaft on the gear box.

The Pros and Cons:

The pump and gearbox are self contained with no belts and pulleys. No belt guard taking up space. The gear ratio being approximately 2.2:1 allows for the pump to run at slower speeds with higher output volumes than most high speed direct drive pumps. The gear box driven machine can run for longer times with higher efficiency. The initial cost is more for the gear box type unit versus a belt drive unit but makes up for it in less down time that you might have with belts and pulleys.

The boxes fit into 1"and 1-1/8" shafts. They feature an SAE J609A flange for proper connection.

AR1601 - Gear Boxes RK / XR / XW / SXW Series

Helpful tips to keep your pressure washer pump operating at peak performance

California Residents - Click here for Prop 65 WARNINGS

Canonical Reference:	true
Shipping Availability:	ComrogenAPI.Extensions.NetSuite.WebServiceNetSuite.ListOrRecordRef
Weight:	0
Manufacturer:	Annovi Reverberi
Dimensions:	2.24 TO 1 REDUCTION
SKU:	AR1600
Brand:	AR
Pump:	RK / XR / XW / SXW
Shaft size:	1 INCH
Variant MPN:	AR1600
