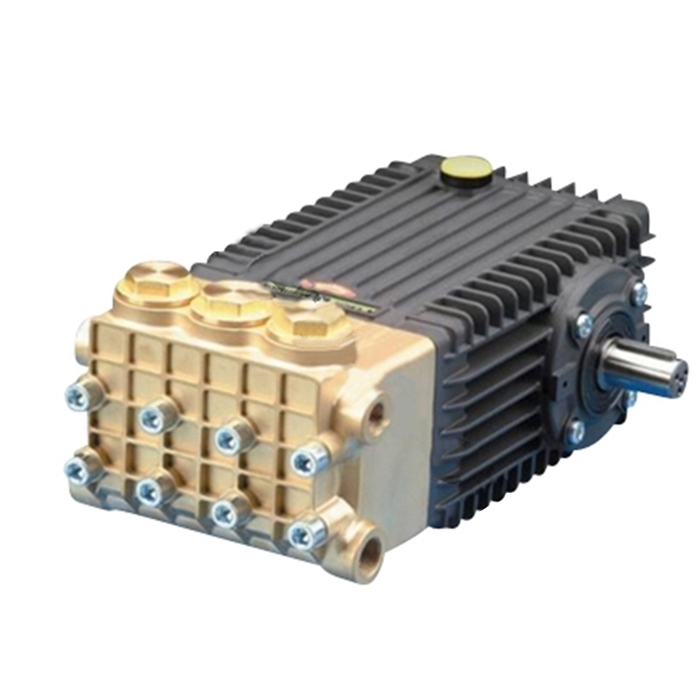

General Pump TSP1821 Pressure Washer Pump

General Pump has been the world leader in pressure washer triplex plunger pump development since 1982. While known as the leader in triplex plunger pumps for the pressure cleaning industry, now they have expanded into Industrial pumps rated up to 112 gallons per minute or pressures up to 21,750 PSI to serve Vehicle Wash as well as many Industrial Applications including Sewer Jetting, Oil and Gas Industries, Mining Industries, Mobile Pressure Wash, Food Industries and Exterior Building Maintenance.

The pumps in the General Pump TSP Series are designed to deliver high pressures of up to 7,250 pounds per square inch depending on the model. Pumps in the TSF Series are designed to produce higher flow rates, with the most powerful model providing approximately 12 gallons per minute. In addition to being among the top performing pumps on the market, these units are also among the most durable and feature multi-year warranties as a testament to their longevity. Recognized for their reliability, all General Pumps from Water Cannon also feature lifetime guarantees on the manifolds.

The manifolds of the TSP and TSF series pumps are brass forged and precision machined to stand the tests of time and extreme use. As further evidence of their survivability, even accidental freezing cannot warp these pumps. The pumps have an innovative seal design to extend seal life. The plungers on the pumps improve thermal shock resistance and the valve caps’ design improves hydrostatic performance. General Pumps' large capacity oil crank cases dissipate excess heat which extends the lives of these pumps significantly as well.

Always striving to serve our customers better Water Cannon now offers the complete line of General Pumps and Industrial General Pumps at discounted prices. Water Cannon offers online discounts for volume and you can save up to 20% additional with an added bonus of free freight. General Pump’s motto; "We Will Find A Way”, now with Water Cannon’s help at discounted prices.

The 66 series triplex plunger pump is a high pressure pump with a forged brass manifold that has an exclusive lifetime warranty. It has an innovative seal design to extend the life of the deal. The plunger design on this pump improves thermal shock resistance and the new valve cap design improves the hydrostatic performance.

• Maximum inlet pressure: 125 PSI
• Maximum fluid temperature: 165°F
• Inlet port thread: 1/2" - 14 BSP-F
• Discharge port thread: 3/8" - 19 BSP-F
• Shaft diameter: .945 in./24 mm
• Pump dimensions: 13.84" x 9.8" x 7.7"
• Crankcase oil capacity: 31.0 oz.
• Use GP series 100 oil, product group: X

Helpful tips to keep your pressure washer pump operating at peak performance

Warning California Proposition 65
Detectable amount of chemicals known to the State of California to cause cancer, birth defects or other reproductive harm may be found in pressure washing equipment, accessories and exhaust. For More Information Visit www.p65warnings.ca.gov

Shipping Availability:	ComrogenAPI.Extensions.NetSuite.WebServiceNetSuite.ListOrRecordRef
Manufacturer:	General Pump
SKU:	TSP1821
RPM:	1450
Plumbing Type:	Not Included
GPM:	5.5
PSI:	5100
Drive Type:	24mm Solid Shaft
Variant MPN:	PMP-G2118TSP
