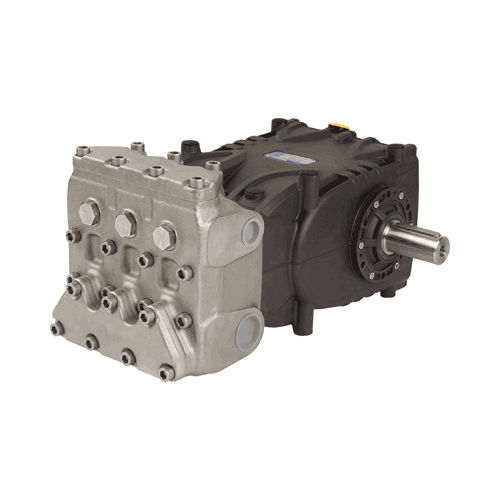

GENERAL PUMP-28GPM - 2890PSI - 1000RPM - KF30A

Emperor Pumps KF Series Industrial Pumps KF28A KF30A KF36A KF40A

Features:
• A New Generation Pump
• Triplex Plunger Pump, available in 4 flows
• Patent-pending, symmetrical power end design featuring top and bottom mounting holes allowing for easy left to right shaft conversion
• Low-high pressure packing design with integrated cooling system
• High volumetric efficiency suction/delivery valves featuring new spherical design of sealing areas
• Splash lubrication
• SAE-C hydraulic drive bell housing flexible couplers available
• Available with external gear box (direct drive only)

Materials:
• High resistance light alloy die cast aluminum crankcase
• 420 stainless steel manifold, nickel treated
• Taper roller bearings
• Special antifriction, forged, light alloy connecting rods
• Forged alloy steel crankshaft, hardened, tempered and nitrited
• Cast iron piston guide, nickel treated
• Solid ceramic plungers
• Stainless steel valves
• Pumps are also available with 316 SS packing components. These models use prefix KFN

Common Specifications:
• Maximum Inlet Pressure: 45 PSI
• Maximum Fluid Temperature: 140 ° F
• Inlet Port Thread: 1-1/2" NPT-F
• Discharge Port Thread: 1" NPT-F
• Shaft Diameter: 1.575"/40 mm
• Stroke: 1.969"/50 mm
• Pump Dimensions: 20.7" x 14.5" x 9.9"
• Crankcase Oil Capacity: 128.5 oz. (3.8 liters)
• Shipping Weight: 150 lbs./68 kg

Helpful tips to keep your pressure washer pump operating at peak performance

Warning California Proposition 65
Detectable amount of chemicals known to the State of California to cause cancer, birth defects or other reproductive harm may be found in pressure washing equipment, accessories and exhaust. For More Information Visit www.p65warnings.ca.gov

Shipping Availability:	ComrogenAPI.Extensions.NetSuite.WebServiceNetSuite.ListOrRecordRef
Weight:	150
Manufacturer:	General Pump
SKU:	KF30A
Finance Option 1:	159.09/Month for 36 Months - Click HERE
Finance Option 2:	395.75/month for 13 months - Click HERE
Brand:	GENERAL PUMP
GPM:	8
PSI:	2890
RPM:	1000
Shaft size:	40 MM
Variant MPN:	PMP-G30KF
